Introduction
When it comes to building resilient structures and efficient pipework systems, one critical component often overlooked is the expansion joint. Despite their modest size and relatively simple design, expansion joints play a vital role in preventing structural damage, reducing stress, and ensuring the longevity of buildings, bridges, pipelines, and industrial equipment. Without them, countless projects across construction, energy, and manufacturing sectors would suffer premature wear or even catastrophic failure.
This article explores what expansion joints are, why they are so important, the different types available, and their many practical applications.
What Are Expansion Joints?
Expansion joints are engineered devices designed to absorb the dimensional changes of construction materials and systems caused by temperature fluctuations, pressure variations, vibration, or ground movement. In simple terms, they act like flexible connectors, giving structures or pipelines the ability to “breathe” and move without cracking or breaking.
For instance, when metal pipes carrying hot fluids expand, the movement must be managed. Similarly, concrete bridges expand in summer heat and contract in winter cold. Expansion joints accommodate these shifts safely.
Why Expansion Joints Are Essential
1. Temperature Control
Nearly all materials expand when heated and contract when cooled. In long pipe runs or large concrete spans, even a small degree of expansion can add up to significant movement. Expansion joints counteract this natural process, avoiding structural stress.
2. Vibration Reduction
In industrial plants, pumps, compressors, and engines create vibration that can fatigue connected pipework. Expansion joints absorb and isolate vibration, protecting sensitive equipment and extending service life.
3. Stress Relief
Without expansion joints, stress builds up within materials and connections. Over time, this can lead to leaks, cracks, or complete system failure. By relieving stress, expansion joints reduce maintenance costs and downtime.
4. Seismic and Ground Movement
In areas prone to seismic activity or unstable ground conditions, expansion joints provide flexibility. They allow movement without breaking apart, improving safety and resilience.
Types of Expansion Joints
Different industries require different designs of expansion joints to meet specific challenges. Below are the most common types.

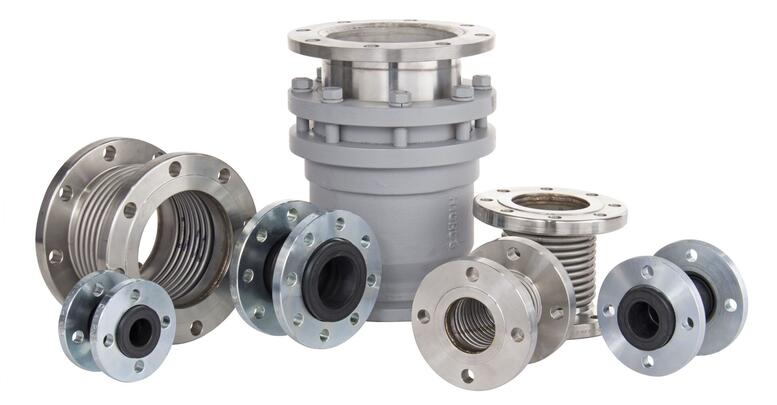

Metal Expansion Joints
- Material:Typically stainless steel or other alloys.
- Best for:High-temperature and high-pressure environments.
- Uses:Power plants, oil refineries, chemical processing, and industrial piping.
- Key feature:Corrugated metal “bellows” that expand and contract while containing pressure.
Rubber Expansion Joints
- Material:Natural or synthetic rubber compounds.
- Best for:Flexibility, vibration absorption, and noise reduction.
- Uses:HVAC systems, water treatment plants, and low-pressure pipelines.
- Key feature:Exceptional ability to absorb vibration and misalignment.
Fabric Expansion Joints
- Material:Layers of fabric, insulation, and protective coatings.
- Best for:Ducting systems carrying gases at moderate pressure.
- Uses:Power stations, cement plants, steel mills, and exhaust systems.
- Key feature:Can handle very large movements while resisting chemical attack.
Slip and Pipe Expansion Joints
- Design:Allow axial movement within a pipeline.
- Uses:Steam, hot water, and other pressurised fluid systems.
- Key feature:Simple but highly effective for thermal expansion control.
Applications Across Industries
Construction and Infrastructure
Bridges, motorways, and large concrete structures are constantly exposed to temperature changes and traffic loads. Expansion joints allow these massive structures to expand and contract without cracking. Pedestrian walkways, airports, and tunnels also rely on them to maintain safety and durability.
Energy and Power Generation
In power stations, both conventional and renewable, high-pressure steam and hot gases place enormous stress on pipework. Metal and fabric expansion joints ensure the safe transport of energy resources while minimising vibration and leakage.
Oil, Gas, and Chemical Industries
Expansion joints are indispensable in refineries, chemical plants, and offshore platforms. They help manage aggressive chemicals, high pressures, and fluctuating temperatures, while preventing costly downtime or hazardous leaks.
Water and Wastewater Management
Municipal water systems and treatment plants use rubber expansion joints to reduce noise and vibration, protect pumps, and allow for minor misalignments in pipe runs.
HVAC Systems
Heating, ventilation, and air-conditioning systems require expansion joints to compensate for thermal expansion in ductwork and piping. They also provide smoother operation by reducing vibration and noise levels.
Benefits of Using Expansion Joints
- Increased Lifespan of Infrastructure
By absorbing movement and stress, expansion joints prolong the life of pipelines, bridges, and machinery. - Reduced Maintenance Costs
Fewer cracks, leaks, or failures mean lower repair costs and less downtime. - Improved Safety
Preventing catastrophic failures in industrial plants, transport systems, and public infrastructure directly protects workers and the public. - Operational Efficiency
Expansion joints maintain system integrity and efficiency, ensuring consistent performance in demanding environments. - Design Flexibility
Architects and engineers can design larger and more complex systems knowing that expansion joints will manage natural movements safely.
Key Considerations When Choosing Expansion Joints
- Material compatibility:Select a joint material resistant to the fluids, gases, or chemicals being transported.
- Operating conditions:Consider temperature ranges, pressure levels, and movement requirements.
- Size and placement:Proper sizing and positioning are critical to performance.
- Compliance:Always choose products that meet recognised quality and safety standards.
- Supplier expertise:Partnering with experienced suppliers ensures you receive the right solution and technical support.
The Future of Expansion Joint Technology
Innovation in materials and manufacturing is enhancing the capabilities of expansion joints. From advanced alloys and synthetic rubbers to high-performance coatings, the latest designs are lighter, stronger, and more resistant to extreme conditions. With sustainability now a major driver, many modern joints are designed for longer service life and recyclability, helping to reduce environmental impact.
Conclusion
An expansion joint may not always attract attention, but they are indispensable to the safety, efficiency, and durability of countless systems across industries. From bridges and pipelines to HVAC systems and chemical plants, these small but powerful devices safeguard infrastructure against the forces of nature and industry.
Whether you are an engineer specifying a new installation, or a facility manager seeking to reduce downtime, it pays to understand the importance of expansion joints and to source them from trusted specialists.
